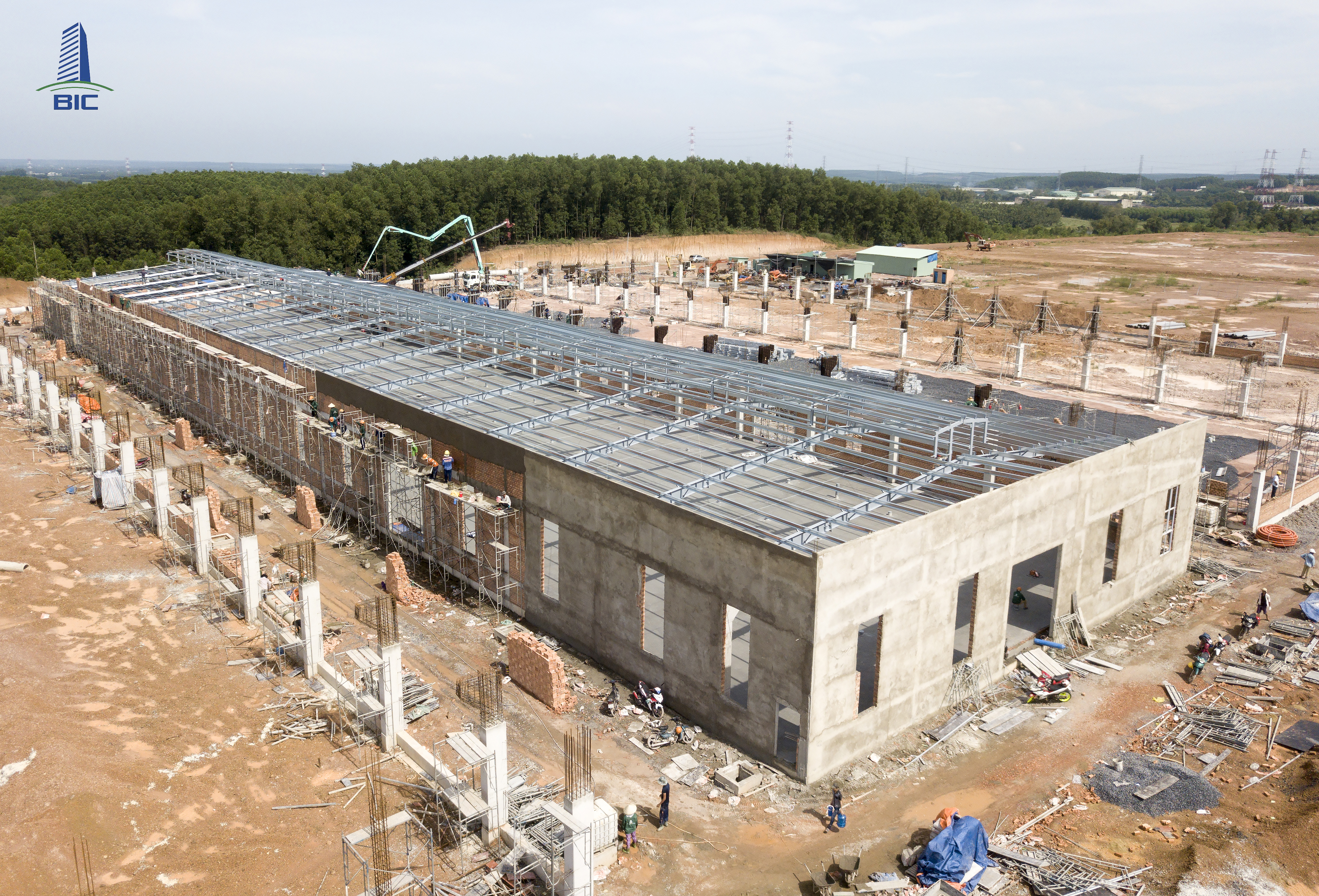

Steel workshop is considered the most optimal solution ever. Especially after the pre-engineered steel frame technology was born, this construction technique has almost completely changed the traditional methods. Helping contractors and investors save a lot of time, effort and costs for construction.

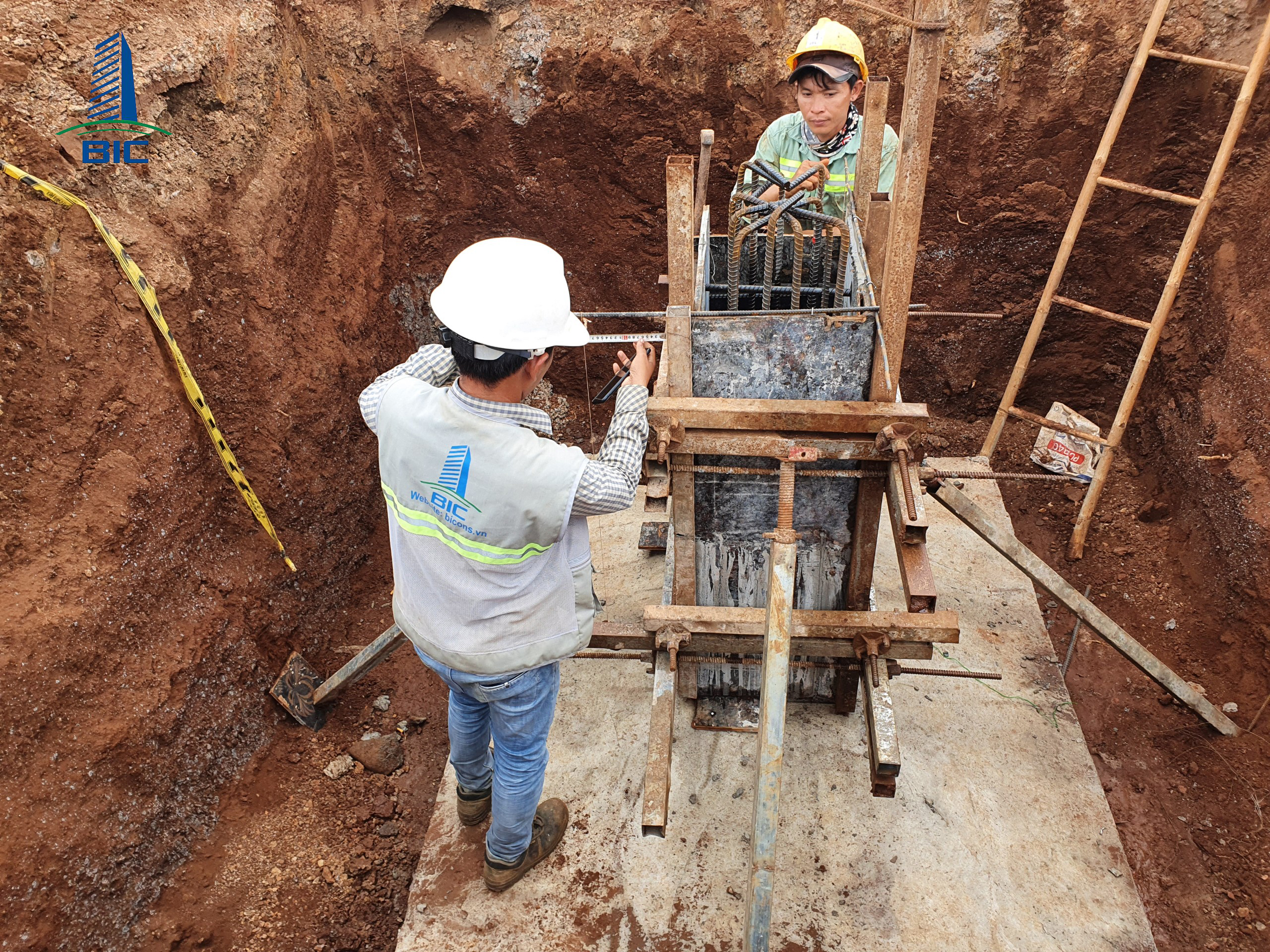

Foundation structure: It is reinforced concrete, which transmits the load above to the hard ground below. There are single foundations, tapes, rafts, piles that are widely used and suitable for the geology of each region.
Factory floor: Concrete is poured under the base layer and compacted sand. The thickness of concrete depends on the load of machines and vehicles moving in the workshop. The substrate must be polished or epoxy painted to make it waterproof and easy to clean and clean.

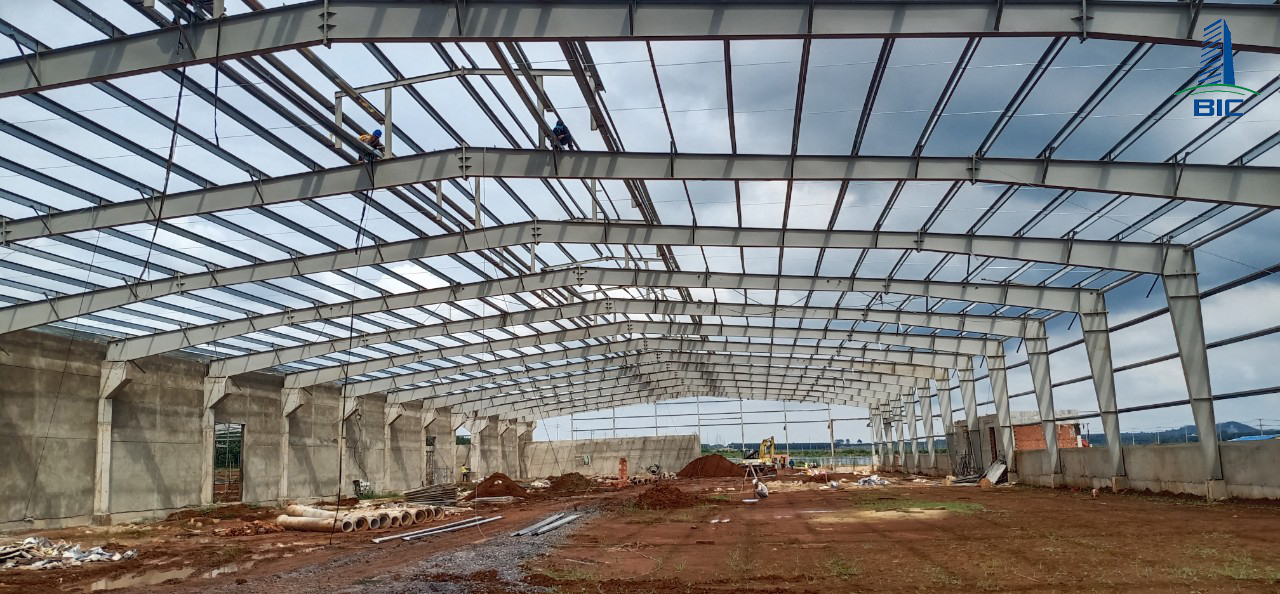

Main factory structural frame system: The main factory structural frame system includes columns, beams, steel trusses. These are the most important parts, capable of bearing and exceeding large spans up to 100m.
Skylights and canopy roofs: Skylights are usually placed on the top of the factory for ventilation and ventilation during operation and production. The lobby roof system has the effect of covering rain and sun at the door and window positions.
Purlins and roof bracing, column bracing, purlin bracing: Purlins are made of galvanized steel with a C or Z shape with a distance of 1 to 1.5m. This system is closely linked with the main frame and has the effect of supporting the corrugated iron roof system above. Although the roof and column bracing system has a small volume, it is very important in the structure of the factory. Works to ensure the stability of the frame system during erection and use.
Anchor bolt: Anchor bolt - a component used to link the details in the prefabricated steel frame factory into a space or system together. Anchor bolt structure includes: Nut, 2 black bolts, bolt body and anti-release warping bolt. Anchor bolts thanks to the friction of threaded rings, nuts to be able to hold the details together.
Cột dầm, cột thép:
+ Bố trí độc lập : Giúp cho việc bố trí bà chọn thép có được sự linh hoạt, bên cạnh đó còn đảm bảo sự thuận lợi và dễ dàng thi công
+ Bố trí giao nhau : Những thanh momen dương phải được uốn tại các phần giữa của nhịp đặt phía dưới, lên phía trên sau đó cùng kết hợp lại để cột thép chịu momen âm.
Beam columns, steel columns:
+ Independent layout: Helps to make the steel layout flexible, besides, it also ensures convenience and ease of construction.
+ Intersection arrangement: The positive moments bars must be bent at the middle parts of the span placed below, up and then combined together so that the steel column can bear negative moments.
Covering corrugated iron and insulation materials: Covering corrugated iron is plated with a color layer to increase aesthetics and avoid corrosion by the external environment. Besides, it is also necessary to arrange more insulation materials with air bags or glass wool to regulate the temperature inside the factory. This material is not only heat resistant but also resistant to
--------------------------------------------------- --------------------------------------------------- --------------------------------------------------- --------
