The warehouse construction process is carried out in accordance with the standards to support the convenient design and construction process of the factory, saving costs and quality when put into production, bringing high productivity. The solution to meet the above requirements is the material that meets the criteria of each item to help the investor solve his enthusiasm for profitable investment projects in the future.
This is an important step because most units provide adequate supplies, but in the process of delivery, the quantity and type of materials are inconsistent and unreasonable. In the process of delivery, there are many shortcomings in terms of standard quantity of materials being swapped, which takes time and delayed construction work.
When receiving materials, it is necessary to pay attention to the product code labels that are affixed on the surface of the materials for delivery and then compare with the total volume according to the purchase and sale contract. Pay attention in the delivery of ciphertext bolts.
Installing foundation bolts is always the first and most important step in the process of installing pre-engineered steel buildings and warehouses.
Erection of steel frame warehouse becomes easier thanks to specialized machine tools such as theodolite gauge, laser projector for steel structure erection for large or small projects.
This supports high accuracy about the elevation plane square root. Laser projector theodolite is indispensable in the installation of warehouse foundation bolts
This is the main step in the warehouse building process. Depending on the area of different sizes of the warehouse, cranes are arranged in combination with construction. The width of the warehouse is 30m or more, a reasonable crane must be arranged to avoid bending, but one can install columns and trusses from the middle of the warehouse and then deploy to the two sides of the gable, or deploy from the top of the house.
Installation should be carried out from one gable of the house and then continued inside.
When the installation of the rafter column is completed, it is necessary to hold on tightly to ensure that the rafter column does not move. This stage must be done well and properly to continue to deploy the next stage when building the warehouse

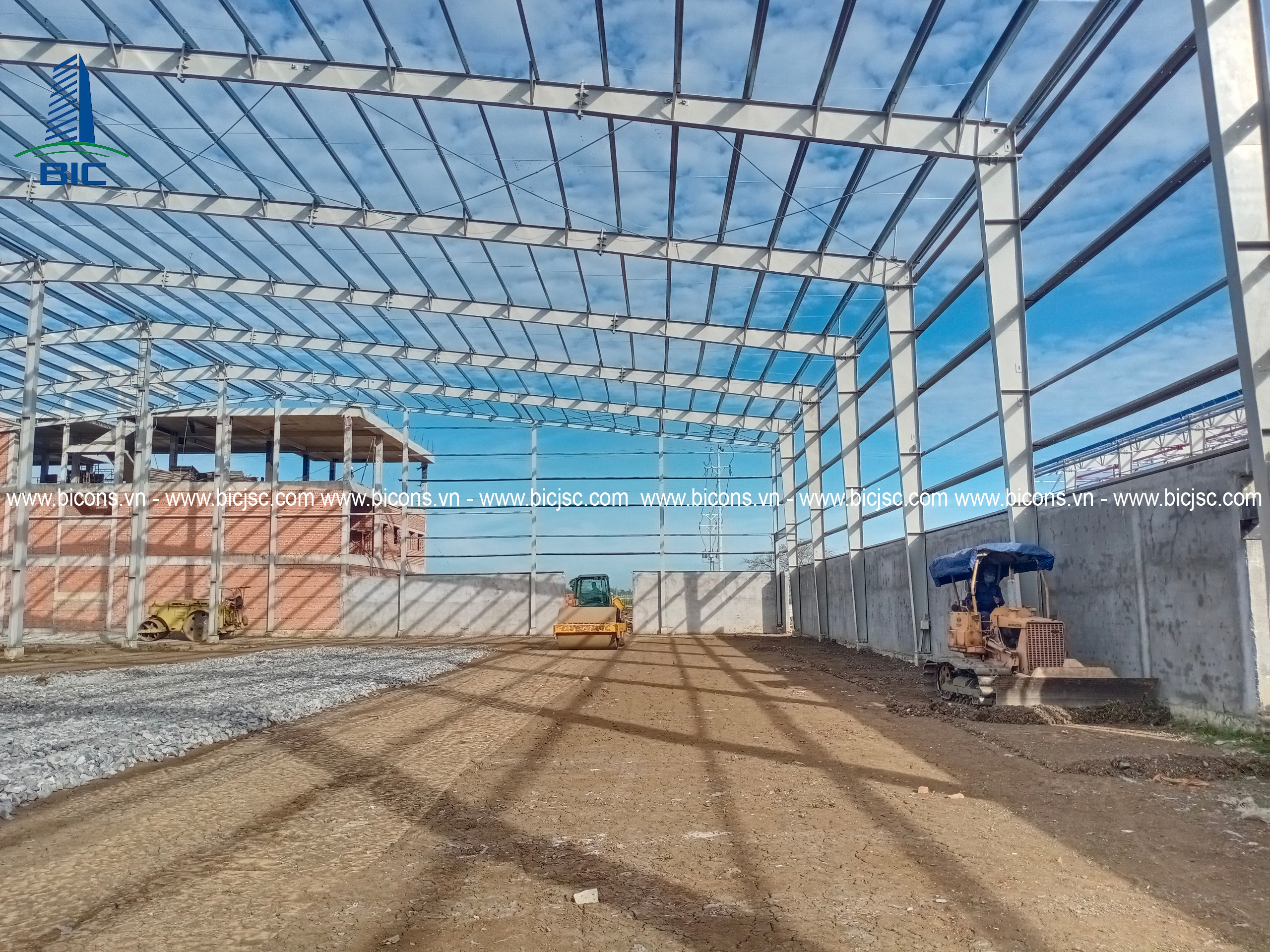

The truss column in the warehouse is installed according to the standards, with the correct spacing and alignment

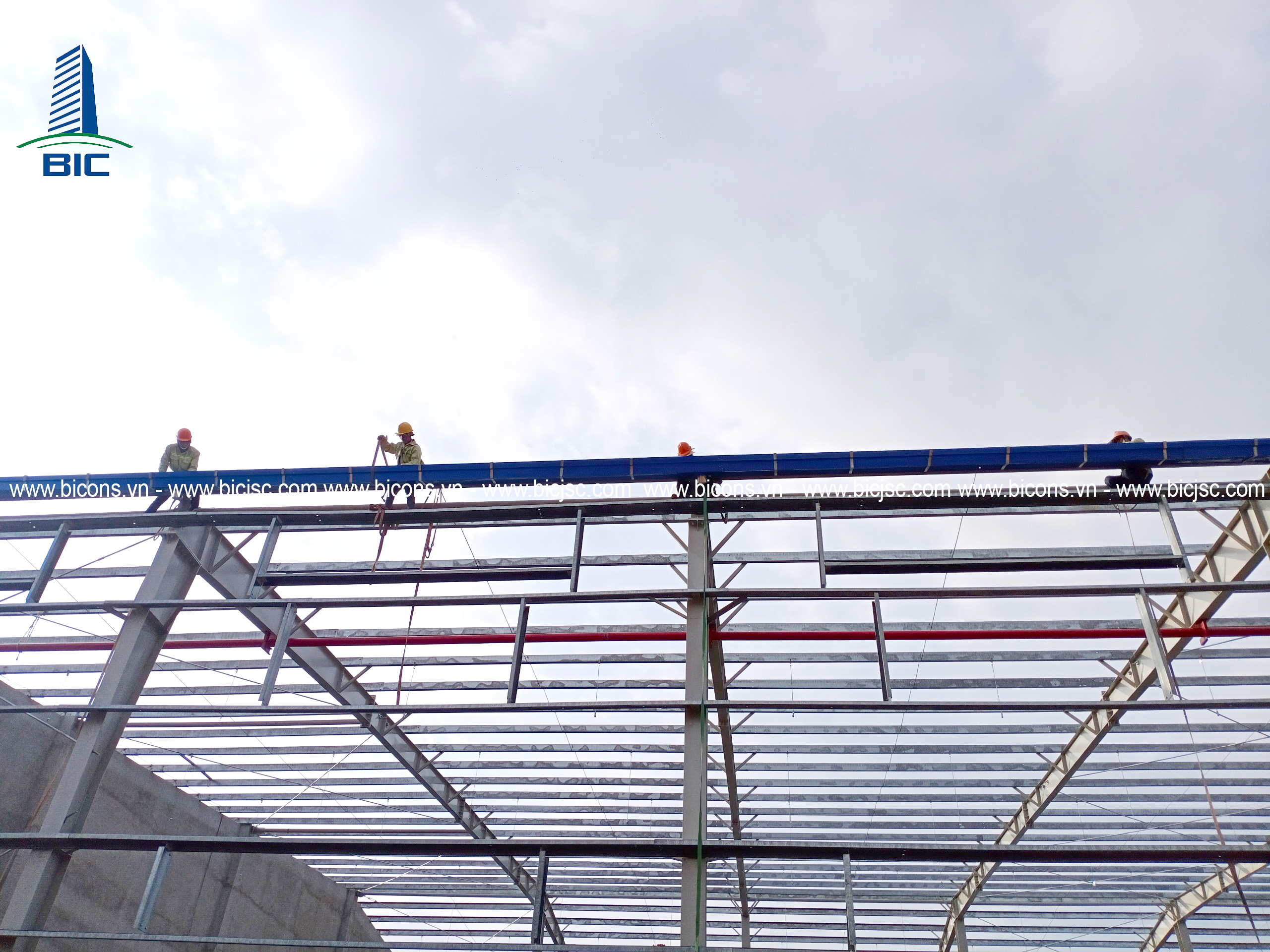

The erection of the main steel frame requires this work to be done at a height. Therefore, construction workers are equipped with safety protective equipment at work. Depending on the warehouse aperture, the lifeline is arranged. The lifeline will be installed from the two ends of the truss pole according to the width of the warehouse area, each end of the lifeline at the rafter mast must be fastened and 1m higher than the rafter surface.

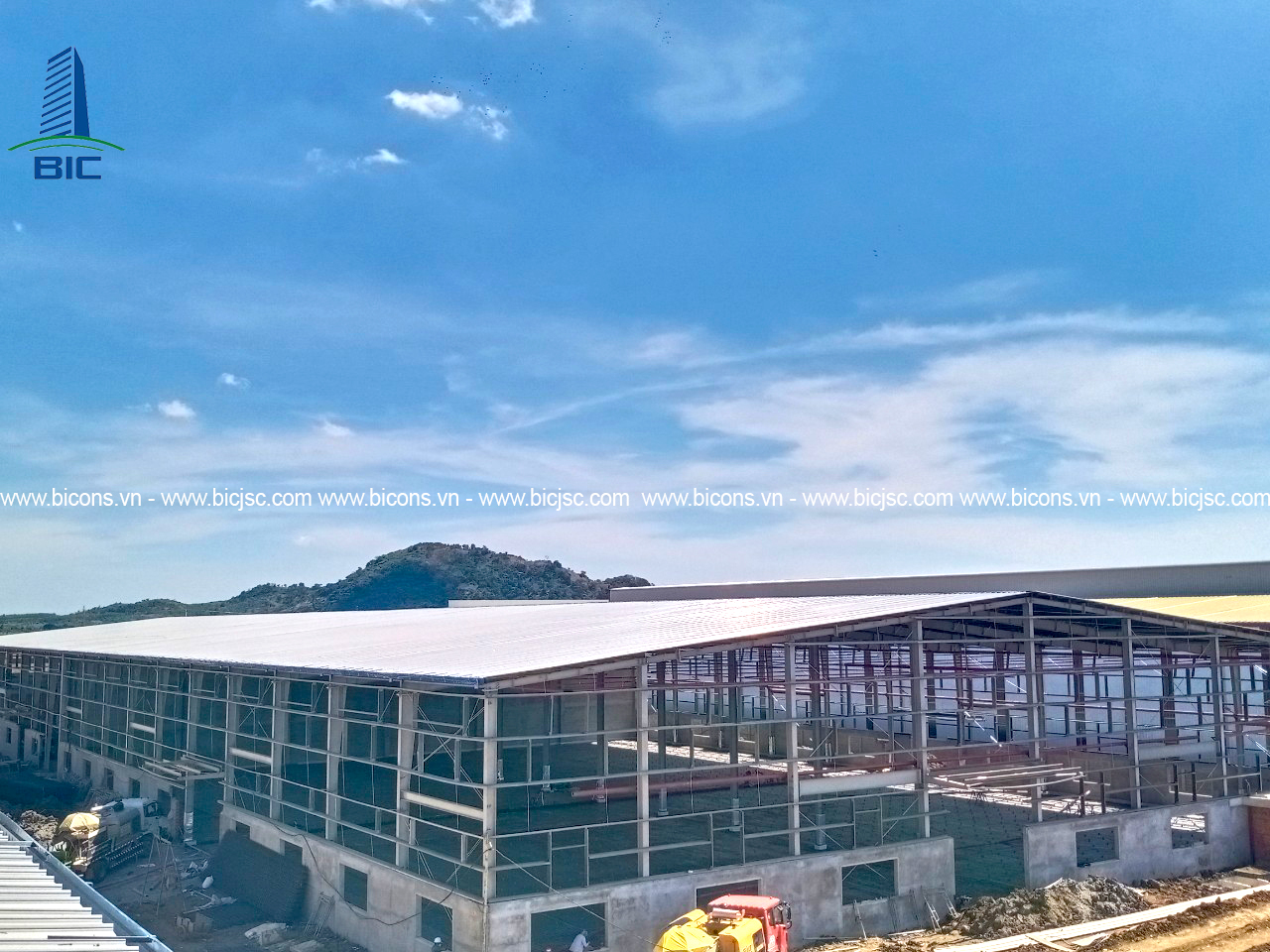

Installation of the corrugated iron roof is carried out after the main frame erection is correctly fixed, the bolts and the tie bars are fixed.
Installation of corrugated iron roof must be done carefully, the position of the first corrugated iron center is the focal point for the remaining installed corrugated iron sheets. This makes sure that after the roofing work is completed, all adjacent joints of the corrugated iron sheet are always on a straight line and perpendicular to the purlin bar. After the corrugated iron roof to the final stage, it is very difficult to adjust the aesthetic, the technique does not guarantee to adversely affect the quality of the work.
Do not install corrugated iron roof with two gables inward if there is no elastic storage according to the design.
For warehouses with additional cotton roofing under the corrugated iron roof, it must be done carefully to ensure that the joints of the straight insulation cotton are not pulled and the underside of the insulation cotton is not wrinkled.
The construction of the partition is not complicated, the aperture of the partition is usually not too long. When installing, the compartment must be combined with the builder from the beginning to ensure a good fit. And when installing wall panels, pay attention to the following points:
Need to be precise during the installation process
Carefully check the bolts that have caught the gaps at the junctions of the corrugated iron with the corrugated iron, the gap at the ventilation openings to ensure that they do not leak later. If erected without standing, the structure is prone to damage, leading to the difficult closing of the door or the door jumping off the guide rails.
The unit price applied to warehouses and prefabricated factories with oversized systems from 20m to 30m, the construction price ranges from 1,610,000 VND/m2 to 2,500,000 VND/m2 depending on the size of the construction area and the production activities. The consulting unit will advise and provide solutions for each item of expenditure and send the most accurate quotation.
Factory, warehouse, reinforced concrete with corrugated iron roof
Construction unit price ranges from 2,000,000 VND/m2 to 2,200,000 VND/m2
+ Height less than 7.5m
+ Reinforced concrete columns
+ Combination bet with sky door
+ 0.45m corrugated iron roof
Wall 220 built 4m high and corrugated iron shutters
Simple warehouse construction unit price
Area under 1500m2 with elevation less than 7.5m steel core columns or concrete columns, thepsv trusses, iron boxes 100mm from the wall tole, tole wall, tole roof
Unit price from 1,300,000 VND/m2 – 1,500,000 VND/m2 (without crane)
Crane unit price 1,800,000 VND/m2 – 2,000,000 VND/m2
The unit price of warehouse construction will be specific when applied to each case, the investor needs to be supported with specific advice.
