The cost of building a pre-engineered steel frame house depends on the structure of materials, construction conditions lead to changes, so the referenced data is descriptive in order for customers to understand the relative cost of construction. prefabricated steel frame house.
The unit price of pre-engineered steel frame is calculated according to the unit price of VND/m2
+ Shallow foundation option: 500,000 - 600,000 VND
+ Pile foundation: 600,000 – 700,000 VND
+ Structure: 1,400,000 – 1,600,000 VND
+ Finish: 3,000,000 – 3,500,000 VND
The unit price applied to works with basic structure only includes the steel part
- Shallow foundation: Reinforced concrete single foundation system with a depth of 1.5m
- Pile foundation usually uses 200x200 pile, 15m long and reinforced concrete foundation brace system
- Composite structure SS400 or Q235, finished with one layer of anti-rust paint and two layers of color paint
- The deck finish is galvanized with a layer of steel floor and poured with M250 grade concrete.
The construction cost of a civil steel frame house is calculated as follows:
Pre-engineered steel frame: Construction price is calculated by steel volume x unit price. Each project has different technical requirements with different parameters, the unit price will usually be reported to the customer after the survey is done.
Light concrete floor is built with unit price of 620,000 VND/m2 package
Light concrete slabs for wall construction are built in a package of 580,000 VND/m2
Cost of finished construction materials
+ Foundation materials - building walls
- So the government of cement
- Main materials sand and stone
- Main materials steel
- Main materials electrical wire
- Main materials plumbing
- Main materials concrete grade M250
+ Materials for steel columns and trusses, corrugated iron roofs
- corrugated iron roof materials
- Black or galvanized C-purlin supplies
- Iron supplies box
- Materials for truss steel columns, code sheet steel plate
- Sika grout supplies for concrete mounting, bolts, tension cables
+ Finishing materials
- Epoxy gray sika base
- Brick
- Water paint
- Rolling door
- Exit window
+ Unit price for processing steel structure
- Steel truss 4,000 VND/kg
- Installation of steel roof trusses for doors and windows 2,000 VND/kg
- Steel truss roof wind of the door 38,000 VND/m2
- Installing roof sheet 14,000 VND/m2
- Installation of wall panels 16,000 VND/m2
- Installing gutter and drainage pipe 65,000 VND/m
- Install frills only 14,000 VND/m

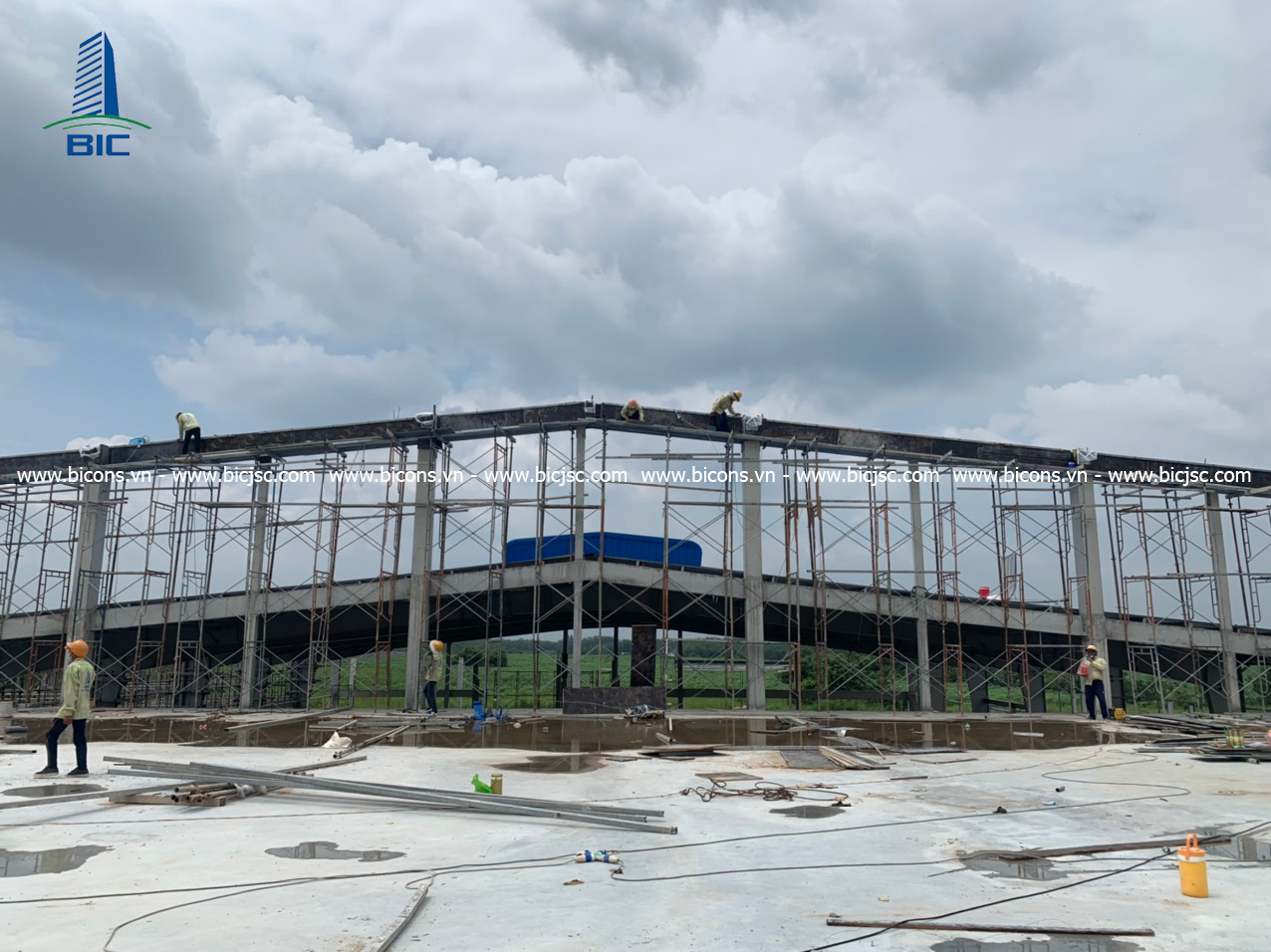

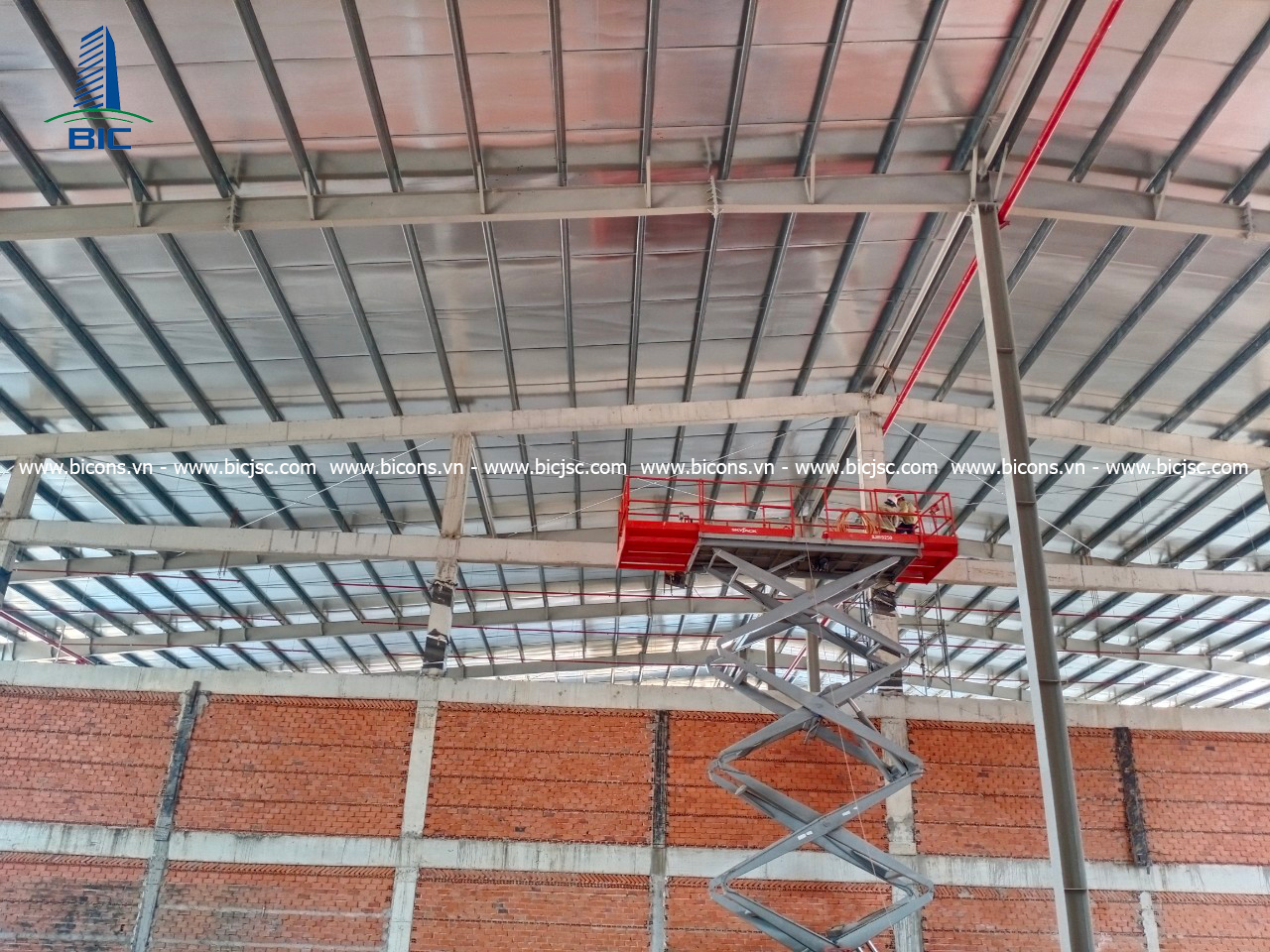

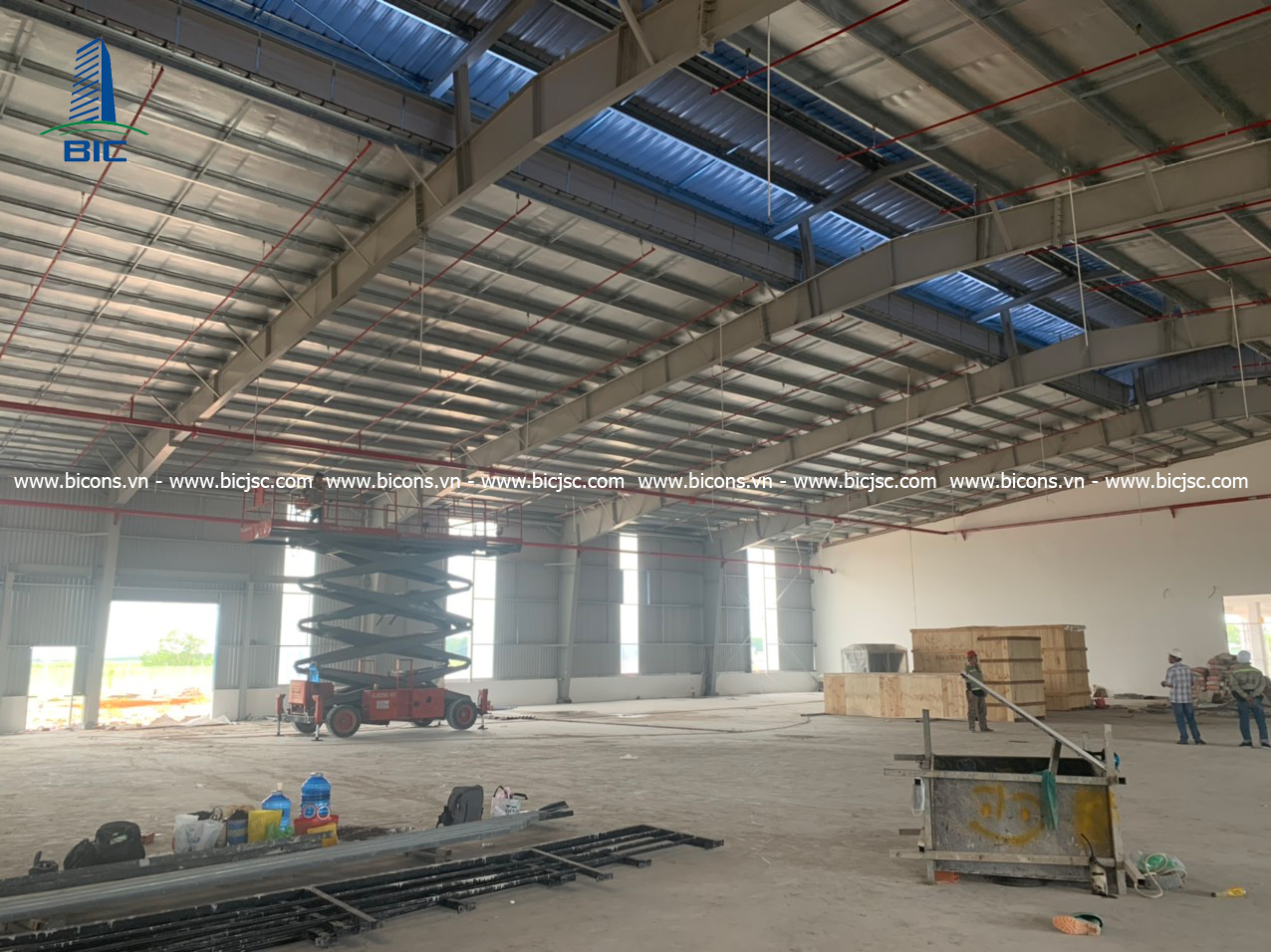

Construction cost of pre-engineered steel frame house is a type of house built with a pillar frame made of steel materials and installed according to technical architectural drawings. The complete construction process goes through 3 core stages: Design, Fabrication of components and construction and installation to complete the work.
The construction method of pre-engineered steel frame steel buildings is widely applied in industrial and civil construction, building factories, supermarkets, commercial centers, etc., quick completion time.
