In modern manufacturing, a common mistake among many investors is applying rigid factory design templates while overlooking the specific characteristics of the production technology line. In practice, a garment factory requires lighting and ventilation solutions that are completely different from those of a heavy mechanical workshop, which needs high floor load capacity, or an electronics factory, which requires strict cleanroom standards. Failure to carefully calculate operational requirements from the beginning can lead to a factory that is completed but cannot fit machinery properly, suffers from congested movement flows, and requires prolonged renovation costs.
Factory design based on function means using the production process as the central basis for shaping the entire architectural, structural, and auxiliary technical infrastructure solution. A construction design standardized according to function does not only eliminate wasted space and optimize goods movement flow, but also reduces long-term operating costs. In this article, BIC analyzes the core factors that help investors make the right decisions and own an industrial factory that operates efficiently and sustainably.
Each industrial sector has completely different technical requirements, machinery lines, and environmental conditions. Factory design based on production function is not an aesthetic option. It is a mandatory requirement to ensure that the entire production system operates smoothly and safely.
One standard drawing cannot be used for every type of industrial factory. Customizing the design according to each field creates distinct technical value:
- Garment, textile, leather, and electronic component factories: These industries prioritize evenly distributed natural lighting, high lux levels, and dust control. The electronics industry in particular also requires anti-static flooring (ESD) and enclosed cleanroom systems to protect semiconductor equipment.
- Mechanical, metal processing, and heavy manufacturing workshops: These require strict foundation and floor structures capable of carrying massive static loads from stamping machines and CNC milling machines. In addition, the steel frame design must integrate overhead crane beam systems for lifting heavy materials.
- Food, pharmaceutical, and cosmetics factories: These must strictly comply with clean standards such as GMP or HACCP. All walls and ceilings should use insulated panels, floor-to-wall coving should prevent dirt accumulation, and dedicated air treatment and humidity control systems must be installed.

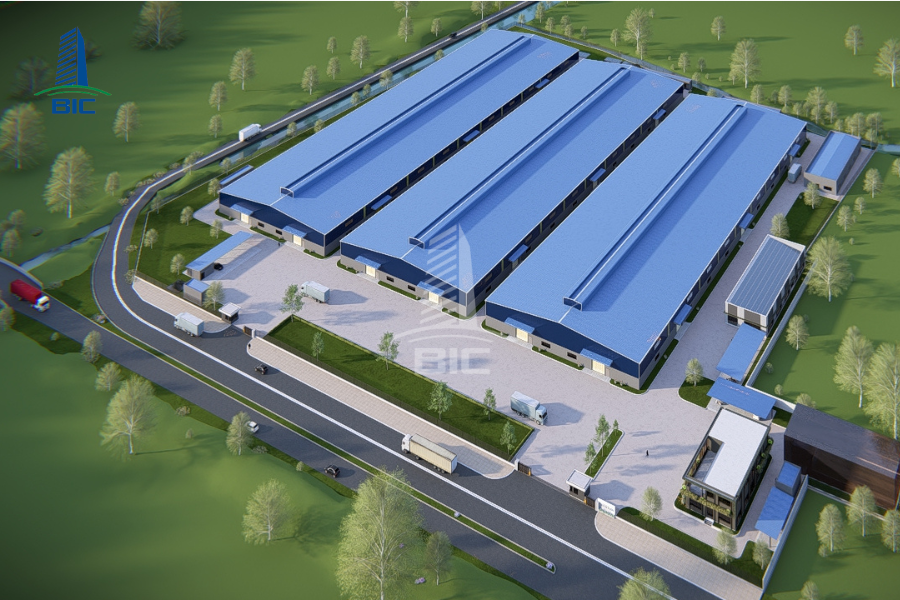

.png)
A construction design that does not closely reflect actual functionality will push investors into an additional cost trap. Machinery that cannot be brought into the factory because of obstructing columns, floors that crack due to excessive loads, or fire protection pipes crossing the overhead crane installation space are costly lessons. Demolishing, reinforcing foundations, or cutting and modifying the steel frame structure when the factory has just been completed not only costs billions of VND, but also disrupts the product launch schedule.
When the space is accurately designed according to function, machinery operates under ideal environmental conditions, including suitable temperature, humidity, and vibration control, helping extend equipment lifespan. At the same time, workers operate in a safe, well-ventilated, well-lit environment that meets occupational hygiene standards. This directly reduces accident risks, lowers product defect rates, and increases overall factory productivity.
To turn production requirements into a real facility, the factory design process should focus on the following five backbone technical factors.
The layout plan is the guiding framework for the entire architectural and technical infrastructure solution. A proper layout drawing must begin with a deep understanding of the company’s technology process.
Selecting the appropriate flow layout:
- I-shape layout: Suitable for simple production processes where components move from one end of the factory to the other.
- U-shape layout: Very common in industrial factories with square or compact land plots. Raw material receiving and finished goods shipment are located on the same side, optimizing manpower and vehicles at the loading area.
- L-shape layout: Suitable for corner land plots or production processes that require clear separation between rough processing and fine assembly stages.
Optimizing internal logistics: The locations of the raw material warehouse, processing workshop, semi-finished goods warehouse, and finished goods warehouse should be designed as one continuous flow. Distances between stages must be minimized to eliminate intermediate transportation time.
Calculating technical clearances: Safe clearances around machinery, usually at least 0.8m to 1.2m, must be ensured so workers can operate, clean, and maintain equipment easily when incidents occur.
Foundations and floors directly carry the loads of machinery, people, and moving vehicles. This is a cost-intensive area and also one of the most prone to cracking and settlement if designed incorrectly.
Accurate floor load analysis:
- Static loads (kN/m²): Include the self-weight of fixed machinery and high-bay storage racking systems such as selective or drive-in racking.
- Dynamic loads: Include the impact of 3- to 5-ton forklifts moving continuously, vibration from stamping machines, air compressors, and metal cutting machines.
Selecting the appropriate floor surface treatment:
- Epoxy coating, oil-based or water-based: Suitable for garment factories, electronics assembly factories, and pharmaceutical facilities thanks to its dust resistance, light chemical resistance, and easy cleaning.
- Hardener or steel fiber reinforced concrete floor: Suitable for mechanical factories and logistics warehouses that are exposed to high abrasion and heavy forklift loads.
- ESD anti-static flooring: Mandatory for factories producing microchips and semiconductor components to prevent static electricity from damaging equipment.
The dimensions of the factory frame determine the freedom of machinery arrangement and working space inside the building.
Span and bay spacing: Large-span pre-engineered steel frame solutions, from 24m to 60m without internal columns, help maximize open space. Minimizing central columns keeps the factory floor clear, making it easier to install long machinery lines or change layouts when needed. Common column spacing currently ranges from 7m to 9m to balance steel costs and spatial flexibility.
Eave height: The height from the floor to the roof edge, commonly from 7m to 12m, must be calculated based on the height of the largest machinery, racking systems, and overhead crane requirements. Sufficient ceiling height creates a more open factory space, reduces heat accumulation at low levels, and provides room for overhead technical pipelines.
The mechanical and electrical system (MEP) acts as the “nervous system and bloodstream” that supports all operations of an industrial factory.
Power and lighting systems:
- Calculate the total power consumption of all machinery to design the transformer station capacity in kVA and the main switchboard (MSB).
- Route power cables and cable trays from the ceiling down to each machinery position, avoiding underfloor wiring that may endanger forklifts and workers.
Water supply, drainage, and wastewater treatment:
- Separate domestic wastewater and production wastewater systems.
- For textile dyeing, electroplating, and food processing industries, the design must integrate a local wastewater treatment station that meets discharge standards before connection to the shared industrial park system.
Compressed air and local exhaust systems:
- Arrange central compressed air pipelines to each workstation.
- Install local exhaust ventilation systems for woodworking, mechanical processing, and powder production workshops to protect worker health.
Temperature, humidity, and lighting directly affect product quality and worker productivity.
Ventilation and heat dissipation:
- Natural ventilation: Use low-level louver vents combined with ventilation turbines or roof ridge louvers for workshops that generate limited heat.
- Forced ventilation: Apply negative-pressure cooling systems, combining cooling pads and exhaust fans, for garment and plastic factories to maintain stable indoor temperatures of around 28°C to 30°C.
Lighting standards:
- Storage areas and internal traffic zones require around 100 to 150 lux.
- General processing and assembly areas require around 300 to 500 lux.
- Quality control (QC) areas and micro-component assembly areas require 750 lux or higher, using neutral light to avoid color distortion in products.
To turn functional requirements from drawings into an efficient real facility, investors should pay attention to the implementation method.
Survey the existing production line: A construction design unit cannot simply sit in an office and draw the layout. Engineers need to directly measure machinery dimensions, observe worker operations, and study forklift movement at the investor’s existing factory to propose the most optimized solution.
Choose the Design & Build model:
- The Design & Build model helps the factory design team and factory construction team agree on the solution from the beginning.
- The construction team understands the purpose of each functional design detail, avoiding incorrect execution compared with the drawings or additional costs caused by structural adjustments on-site.
In summary, factory design based on production function is the core foundation that directly determines operational efficiency, investment costs, and the safety of the entire project. An accurate design helps businesses operate smoothly, eliminate waste, and adapt easily to future expansion phases.
